Engine Type: Horizontal In-line
Displacement: 54.9 cu. in. (900 cc)
Bore x Stroke: Bore: 3.46 in. (88 mm); Stroke: 2.91 in. (74 mm)
Cylinders: 2
Engine Cooling: Liquid
Carburetion: Fuel Injected
Brake Type: Hydraulic Disc
Drive Clutch: P-22 / TEAM LWT
Driven Clutch: Continuously Variable (CVT)
Front Suspension: Independent A-Arm
Front Travel: 9.5 in. (241 mm)
Rear Travel: 16 in. (406 mm)
Ski Type: Plastic
Ski Stance: Min: 36 in. (914 mm); Max: 38 in. (965 mm)
Track Type: Series 8
Track Dimensions: W: 15 in. (381 mm); L: 165 in. (4191 mm); Lug Height: 2.75 in. (66 mm)

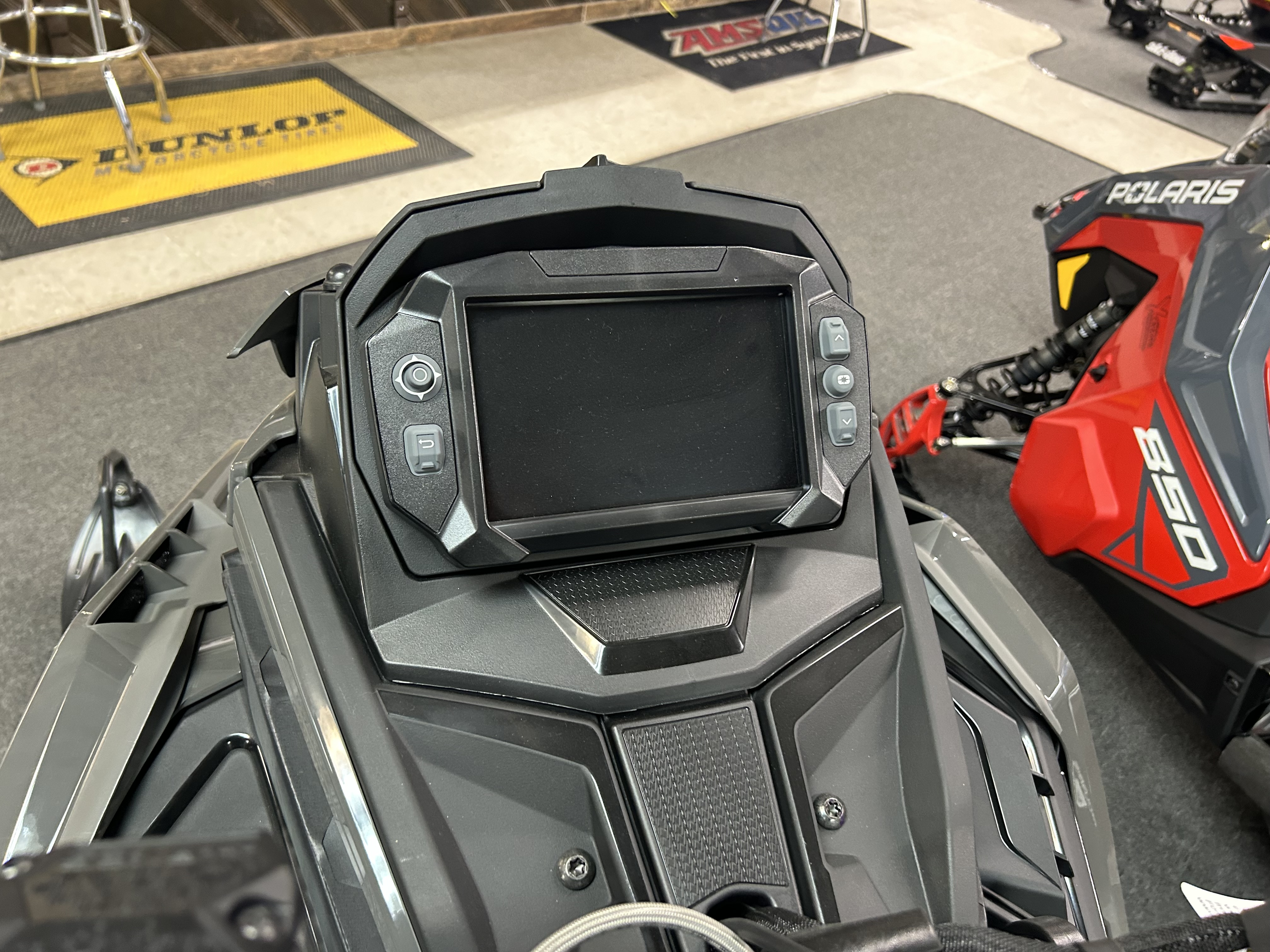

Speedometer: Standard
Tachometer: Standard
Odometer: Standard
Fuel Capacity: 11 gal. (41.6 L)
Dry Weight: 424 lb. (192.3 kg.)
Windshield: Standard
Electric Start: Pull
Reverse: Yes
Mirrors: Optional
