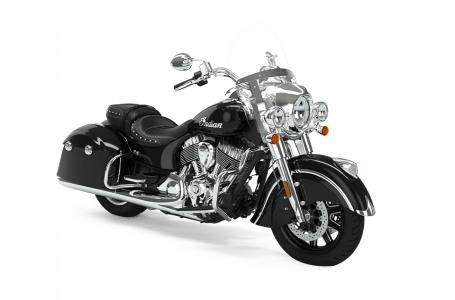

PASSENGER BACKREST WITH RACK (CHROME), STAGE 1 PIPES. Displacement: 111 cu in. (1,811 cc)
Engine Type: Thunder Stroke® 111
Bore and Stroke: 3.976 in x 4.449 in. (101 mm x 113 mm)
Compression Ratio: 9.5:1
Transmission: 6-speed
Front Suspension: Telescopic Fork
Rear Suspension: Single Shock w/ Air adjust
Front Brakes: Dual 300mm floating rotors with 4-piston calipers
Rear Brakes: Single / 300 mm Floating Rotor / 2 Piston Caliper
Front Tire: Dunlop American Elite 130/80B17 65H
Rear Tire: Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Wheelbase: 67.0 in. (1,701 mm)
Seat Height: 26.0 in. (660 mm)
Rake: 25 deg.
Trail: 5.2 in. (133 mm)
Fuel Capacity: 5.5 gal. (20.8 L)
Dry Weight: 803 lb. (364 kg)
Colors: Thunder Black
