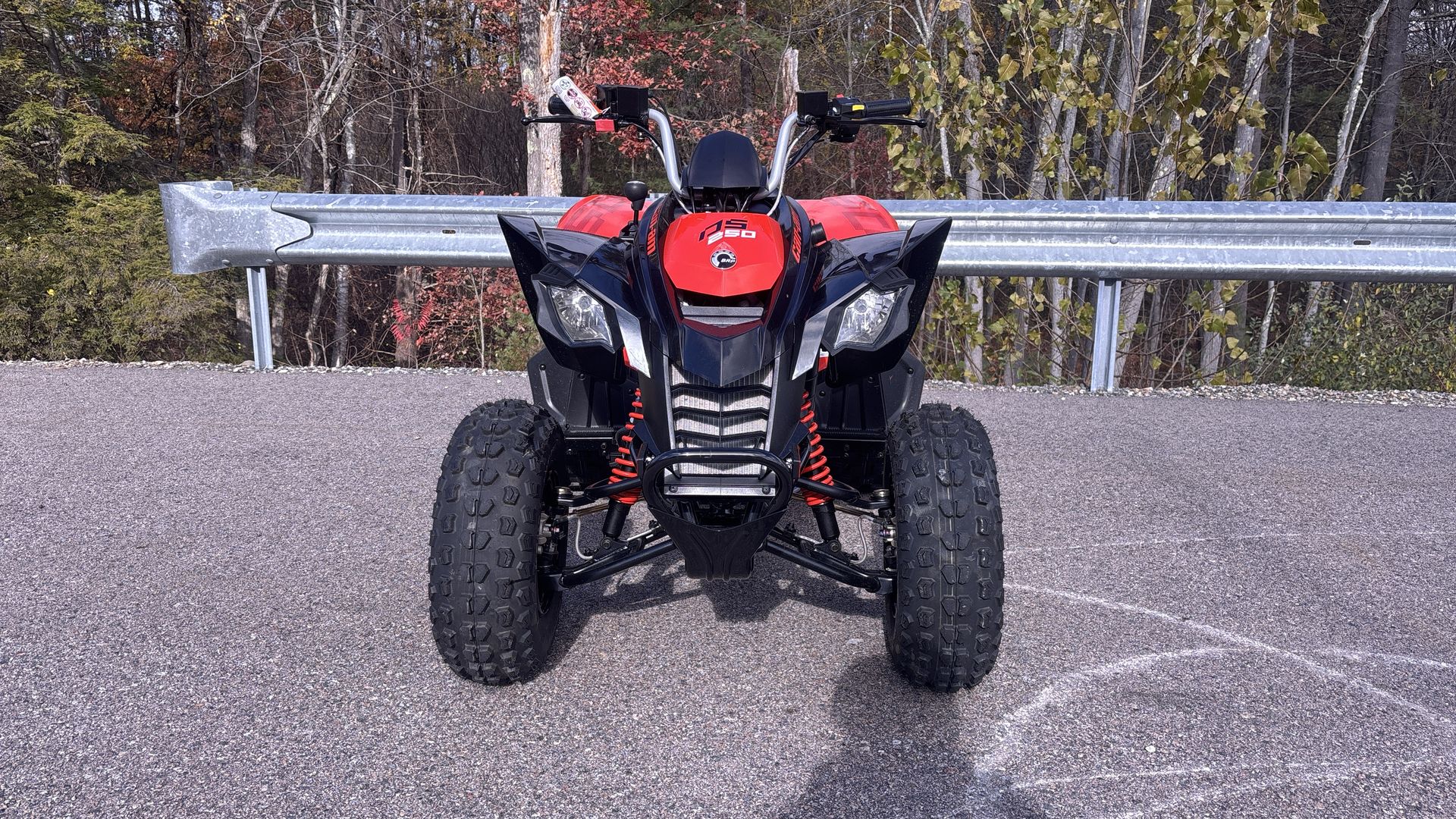

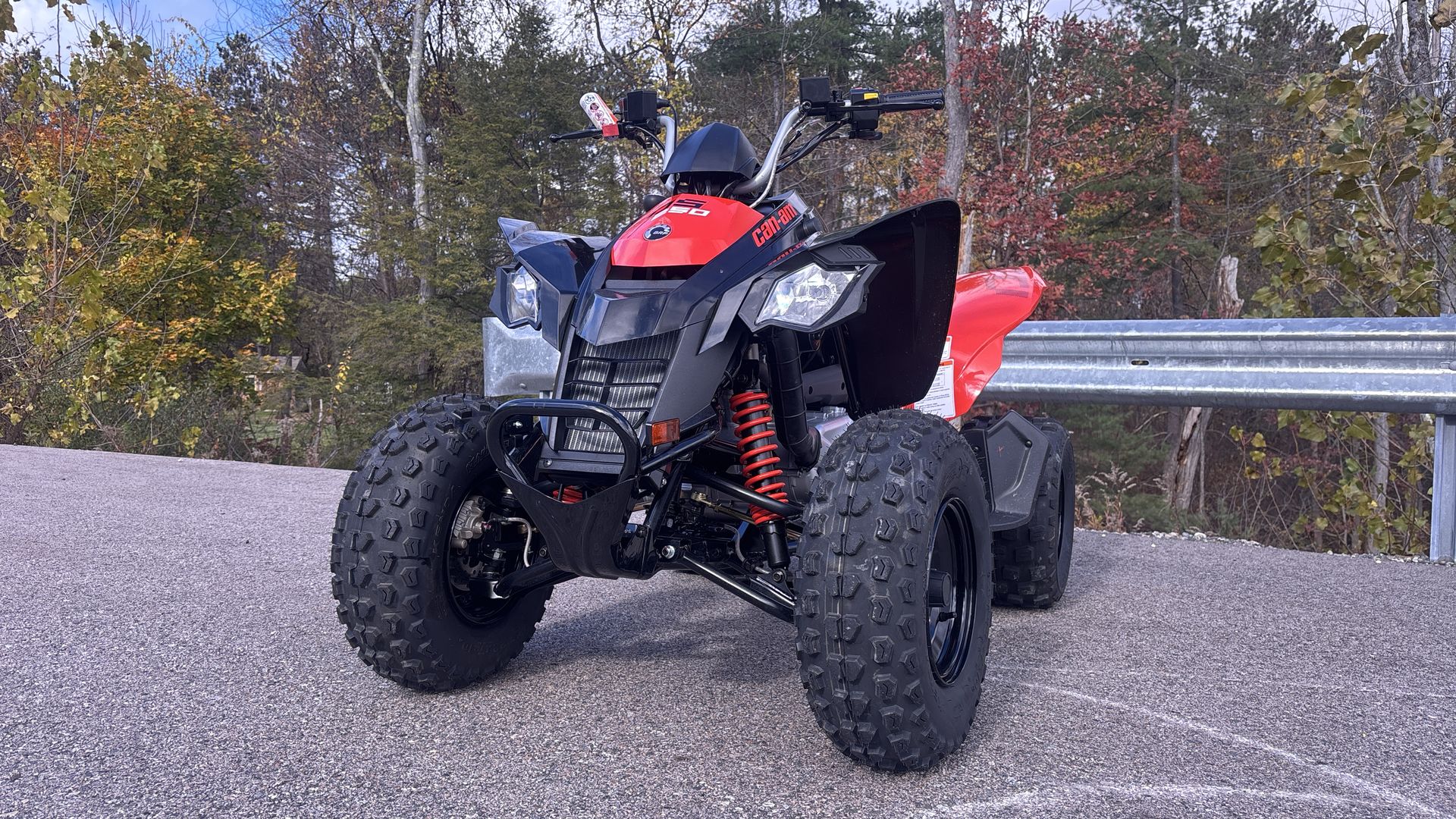

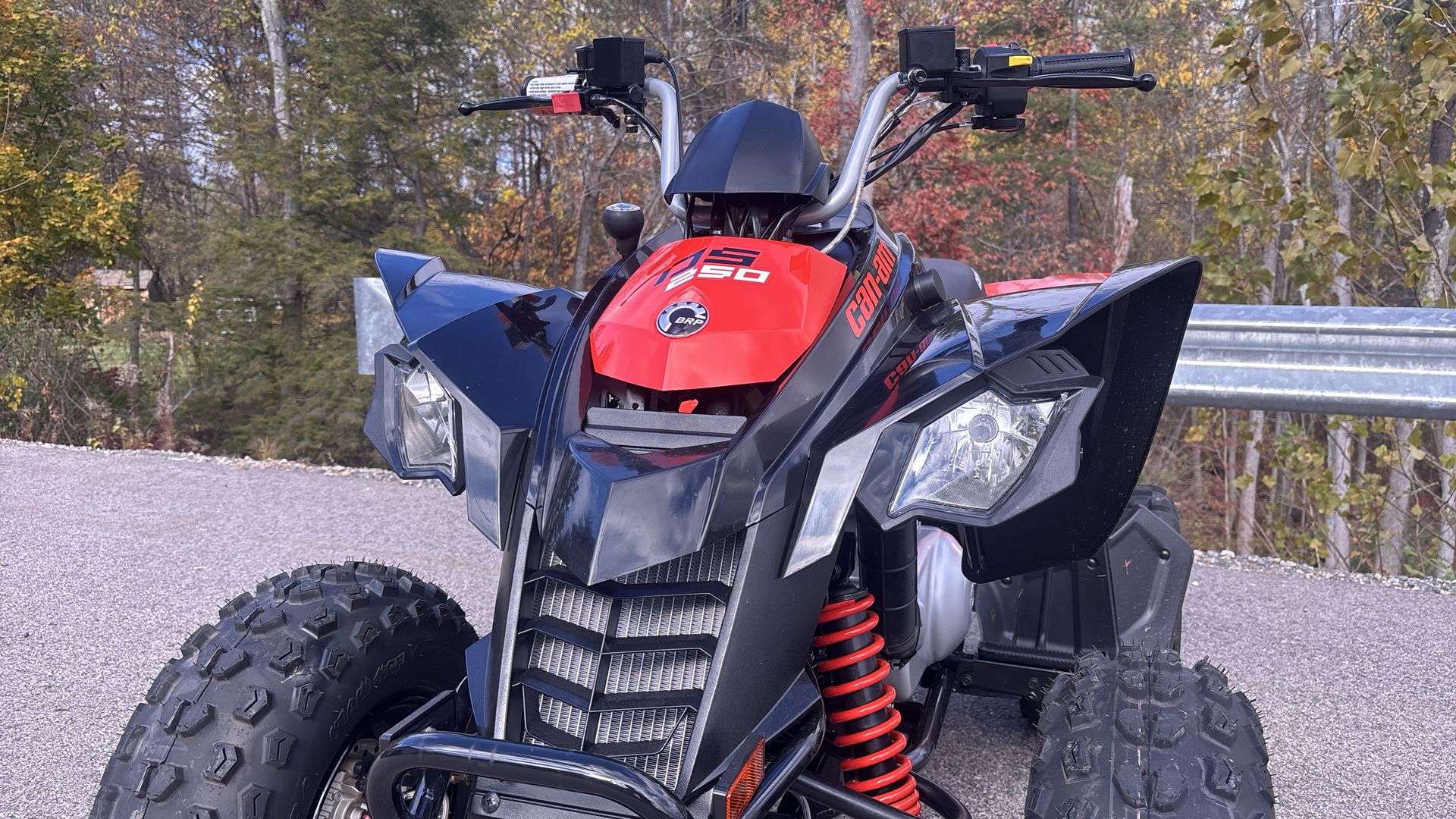

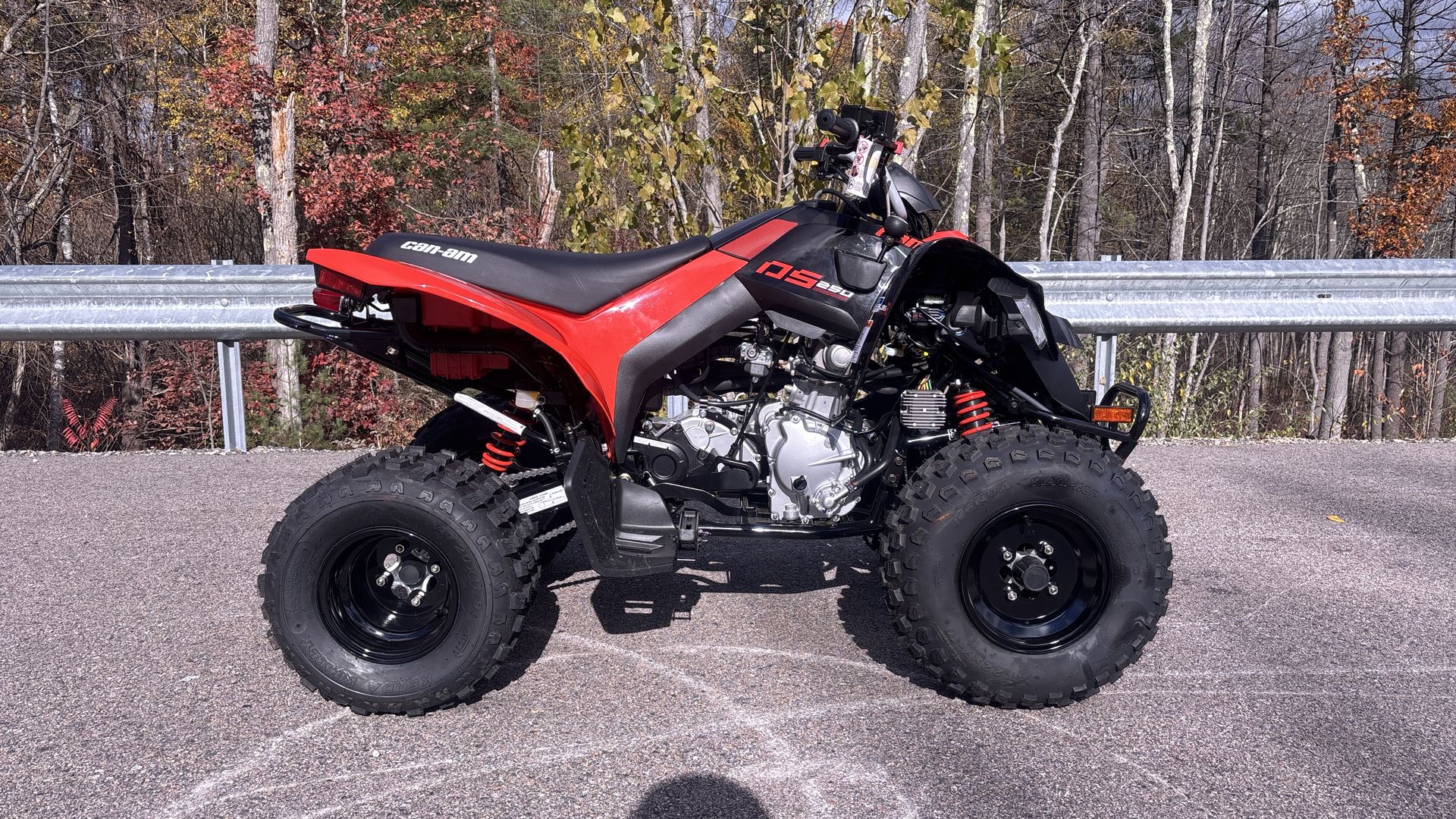

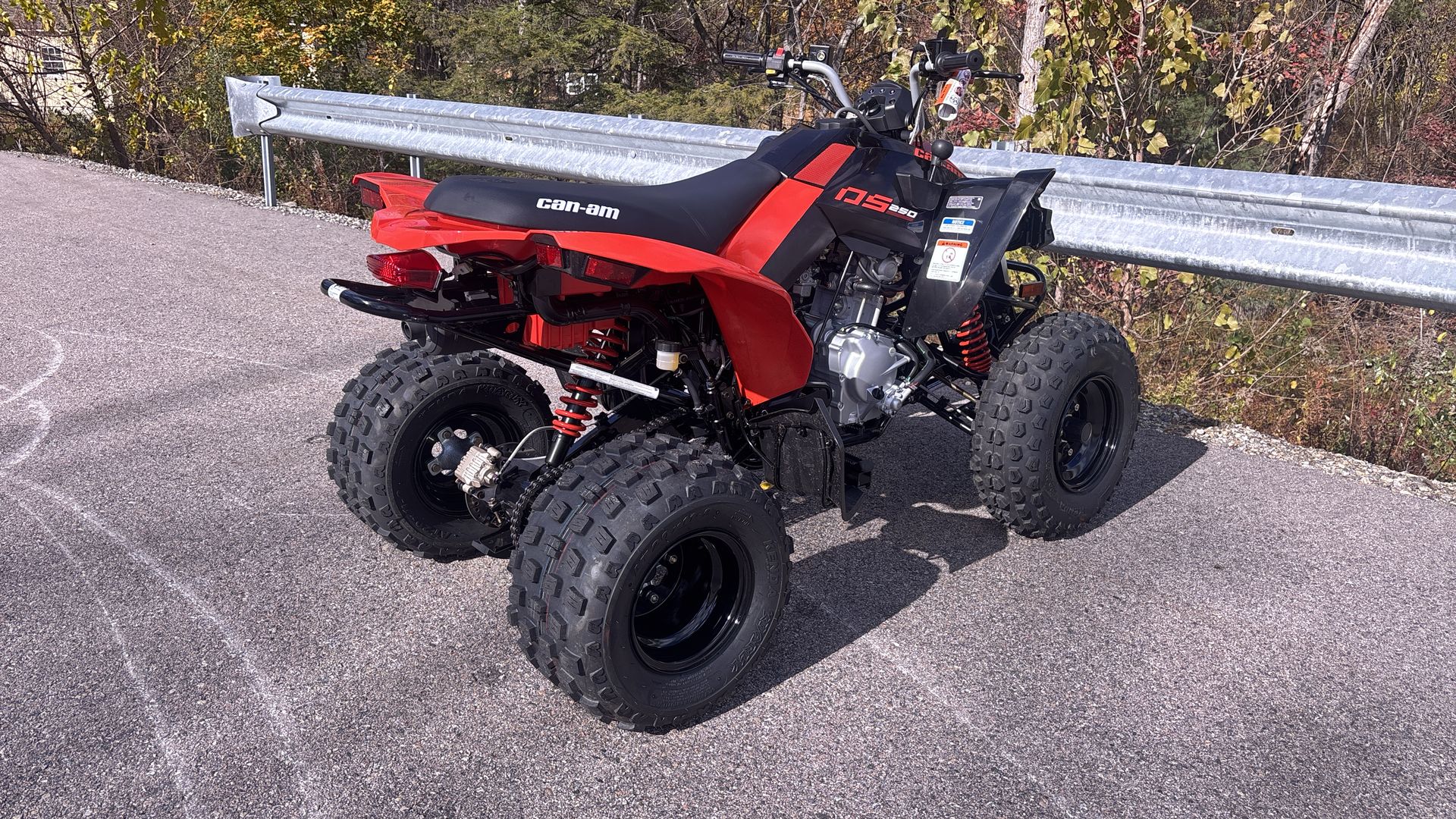

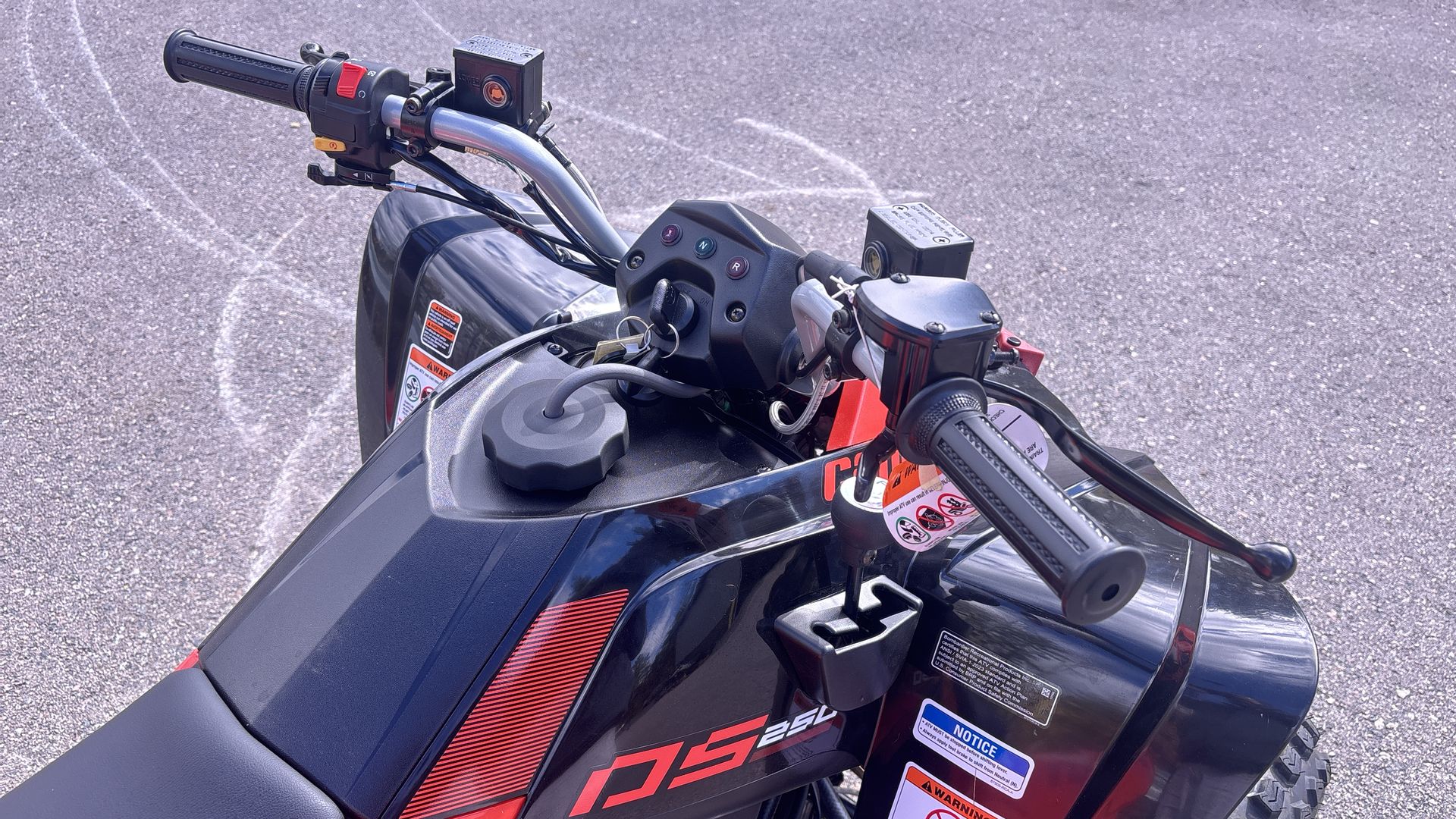

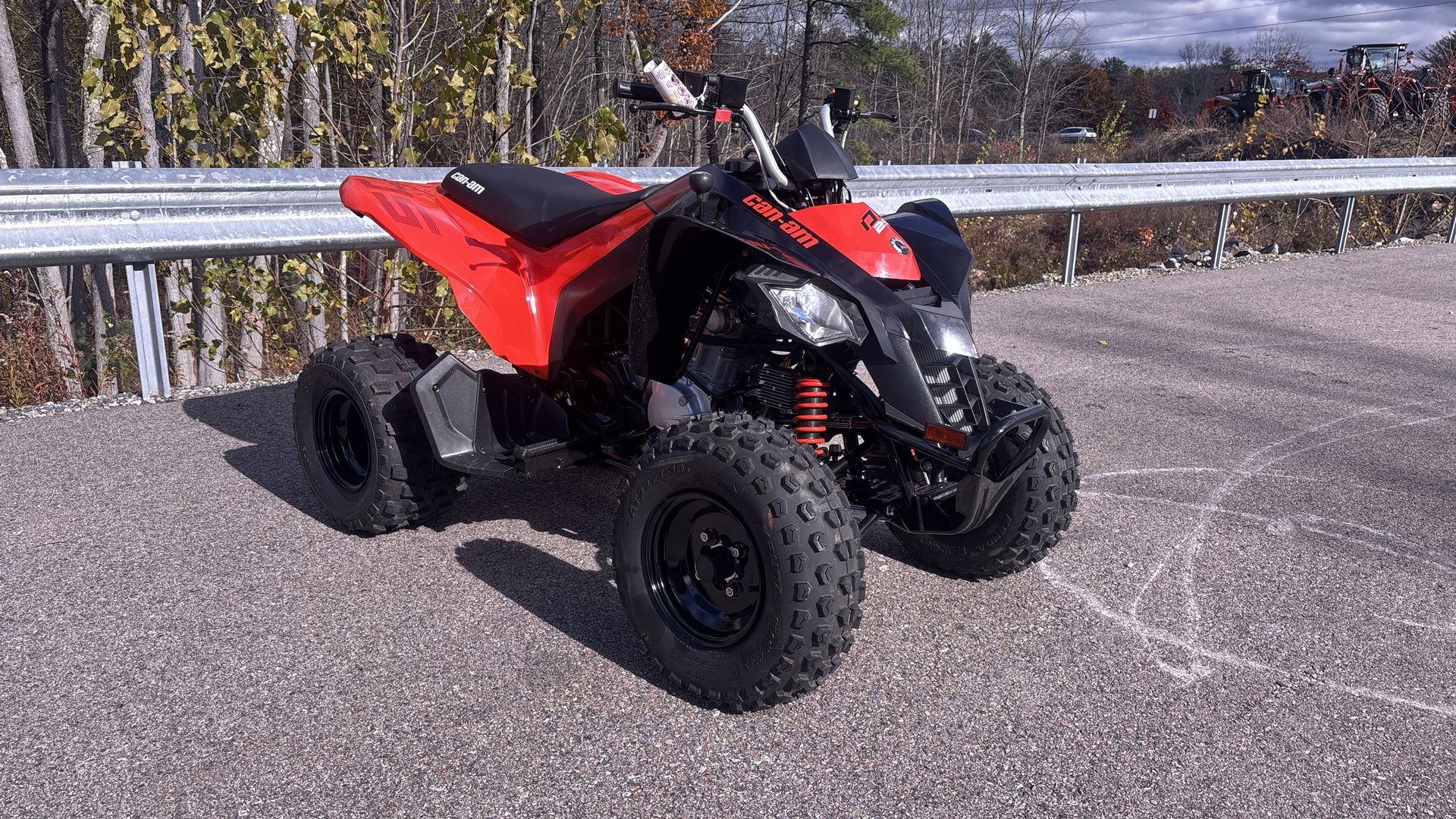

2025 Can-Am DS 250

The 2025 Can-Am DS 250 is a youth ATV with a 250cc, liquid-cooled, 4-stroke single-cylinder engine, and a Continuously Variable Transmission (CVT) with forward, neutral, and reverse gears. It features a double A-arm front suspension with 5.5 inches of travel and a swingarm rear suspension with 6.7 inches of travel. It includes dual hydraulic disc brakes in the front and a single hydraulic disc brake in the rear, with Kenda tires on black steel wheels.
Engine and drivetrain
Engine: 250cc, 4-stroke single cylinder, liquid-cooled

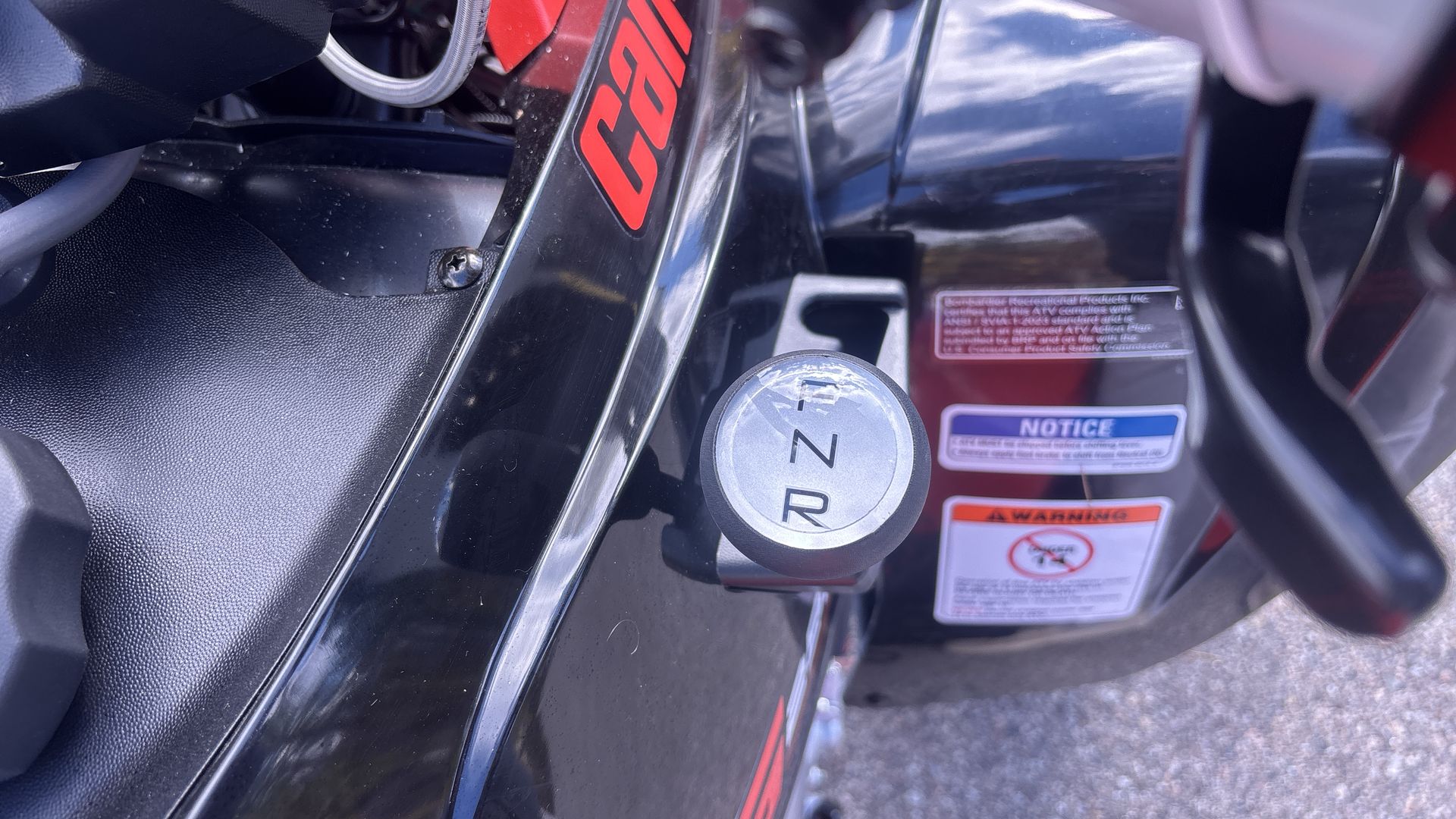

Transmission: CVT with F / N / R (Forward, Neutral, Reverse)

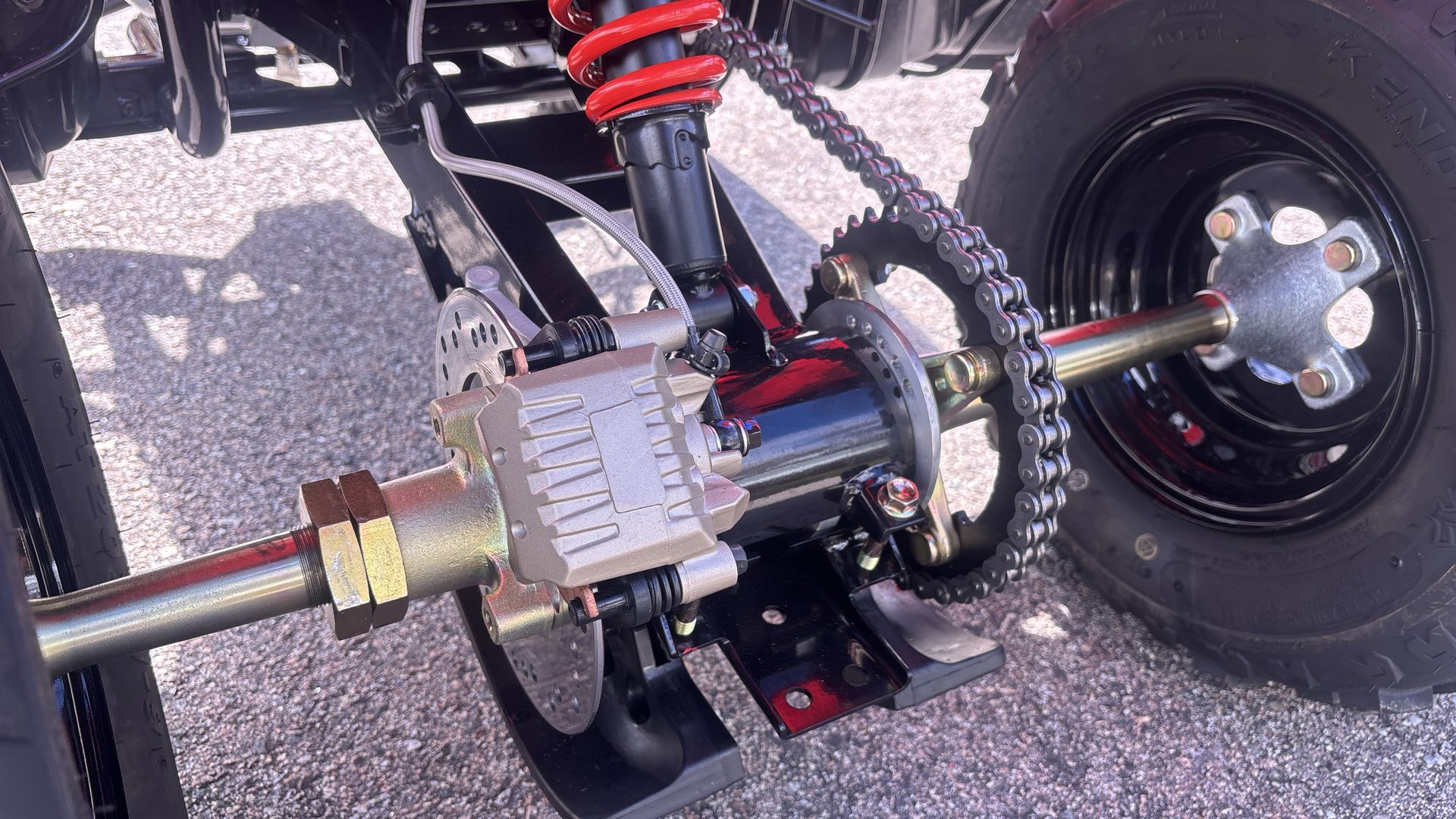

Drivetrain: Chain driven / solid axle
Starter: Electric with backup kick-start
Suspension and brakes

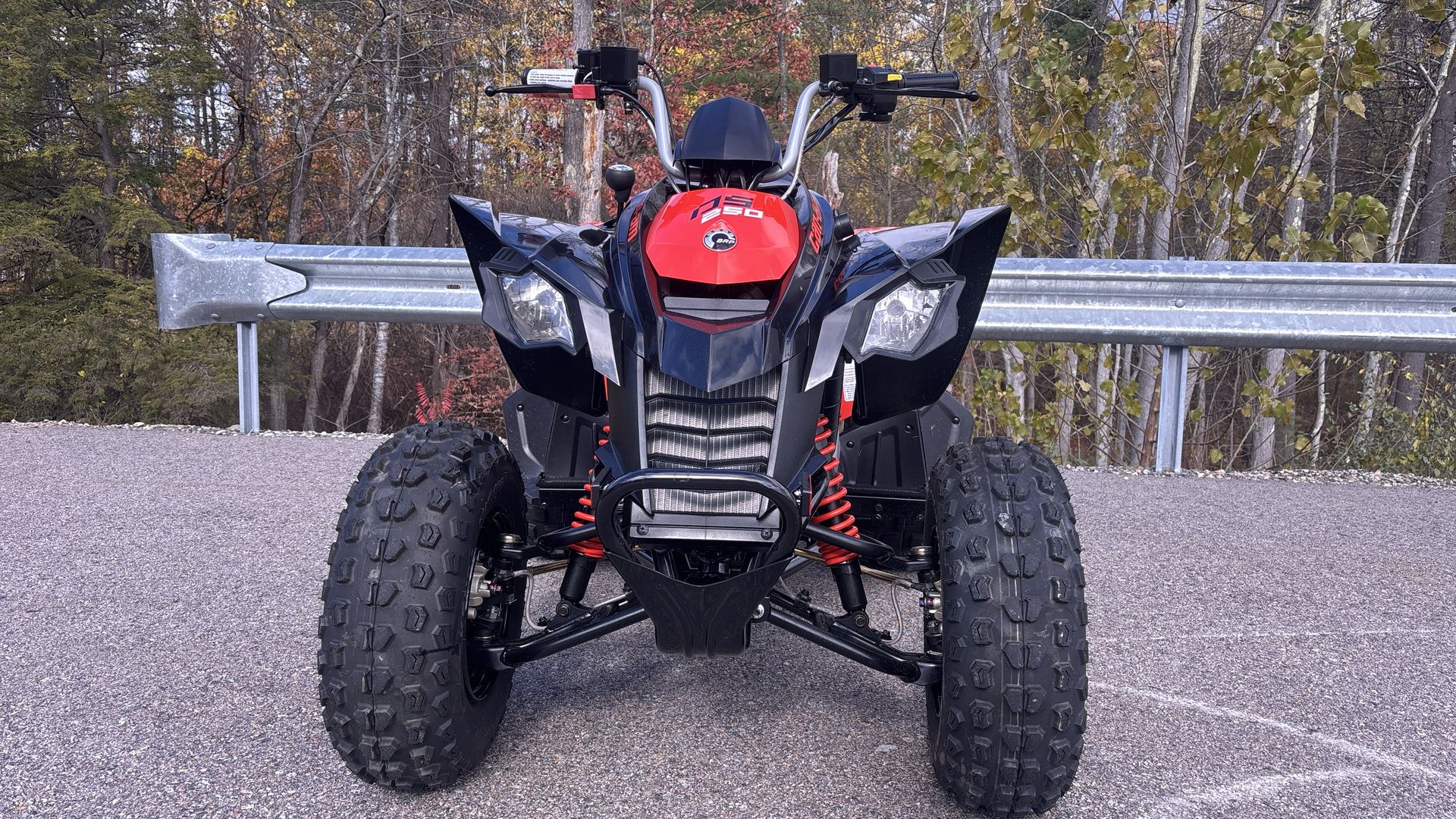

Front Suspension: Double A-arm
Front Travel: 5.5 inches (14 cm)

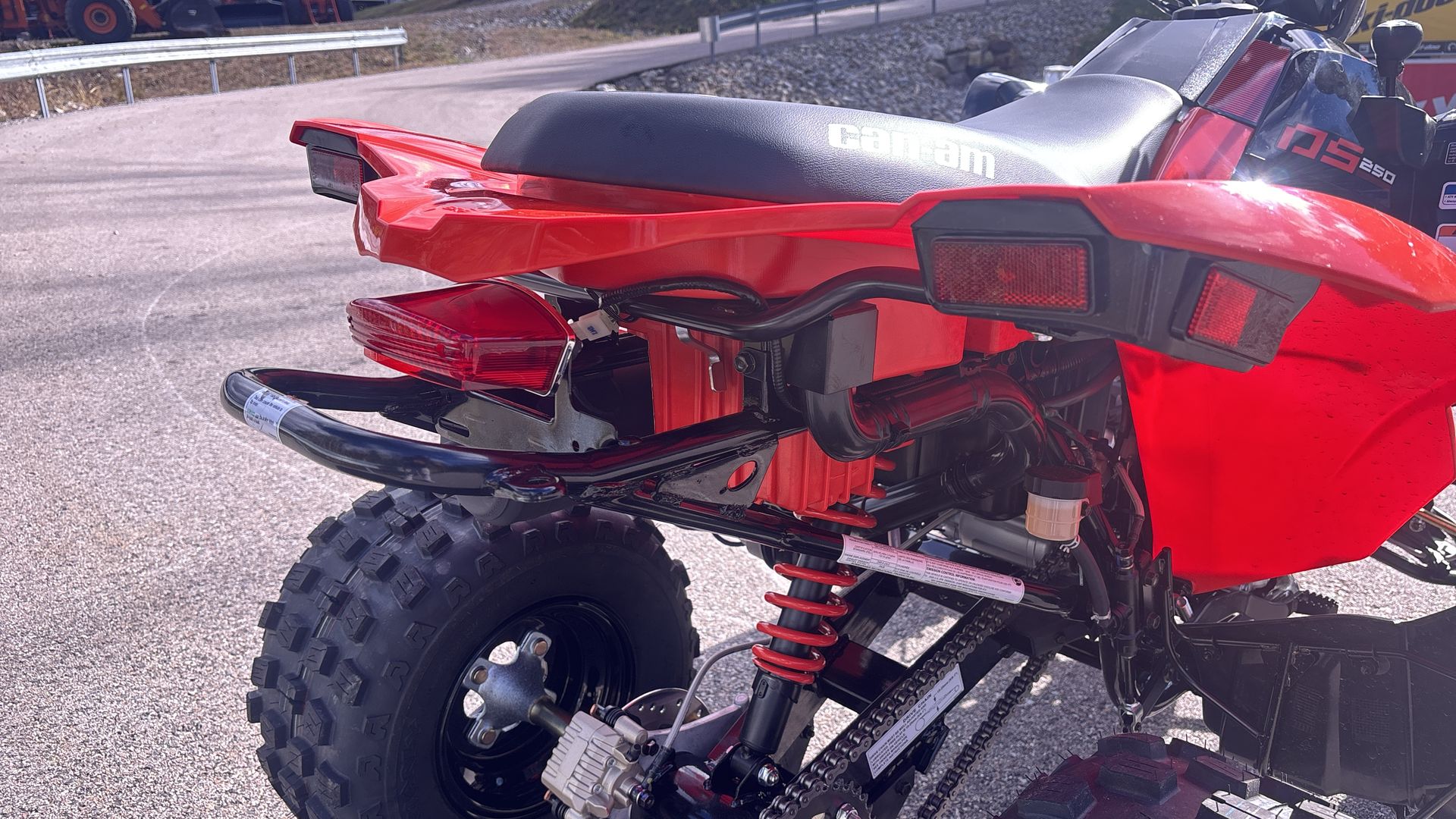

Rear Suspension: Swingarm
Rear Travel: 6.7 inches (17 cm)
Shocks: Twin-tube front and rear
Front Brakes: Dual hydraulic disc
Rear Brakes: Single hydraulic disc Engine Type: Single-Cylinder
Displacement: 15.3 cu. in. (250 cc)
Bore x Stroke: Bore: 2.8 in. (71 mm); Stroke: 2.48 in. (63 mm)
Cylinders: 1
Engine Cooling: Liquid
Fuel System: Gas
Starting System: Electric / Kick
Front Suspension: Double A-Arm
Front Travel: 5.5 in. (140 mm)
Front Brake Type: Dual Hydraulic Disc

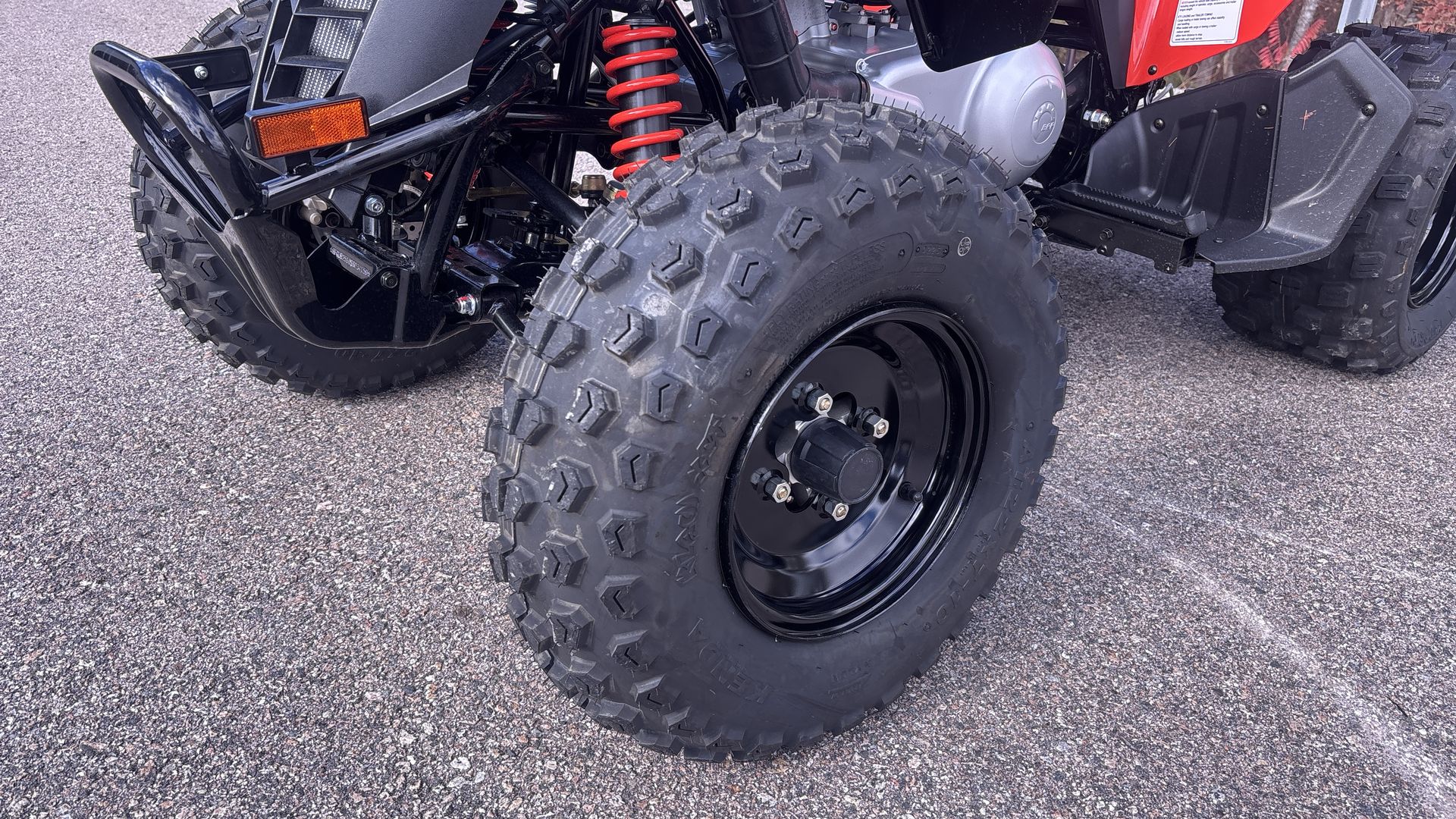

Front Tires: Kenda 22 x 7 - 10
Rear Suspension: Swing Arm
Rear Travel: 6.7 in. (170 mm)
Rear Brake Type: Hydraulic Disc

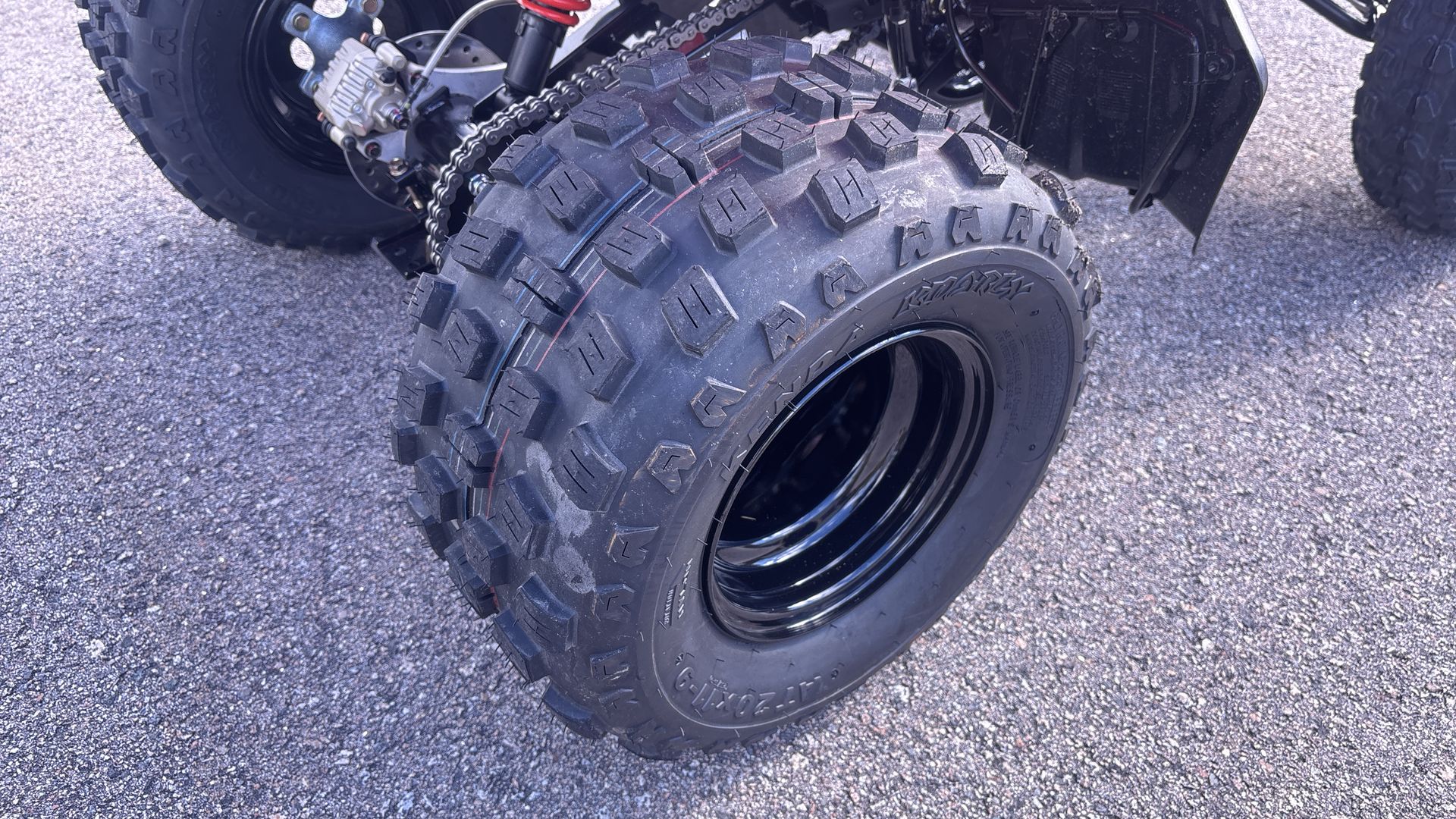

Rear Tires: Kenda 20 x 11 - 9
Frame: Steel
Dry Weight: 429 lb. (195 kg.)
Fuel Capacity: 3.3 gal. (12.5 L)
Ground Clearance: 4.5 in. (114 mm)
Machine Dimensions (LxWxH): L: 72 in. (1830 mm); W: 40.5 in. (1030 mm); H: 43.5 in. (1105 mm)
Wheelbase: 47 in. (1187 mm)
Drive Train: Continuously Variable (CVT)
