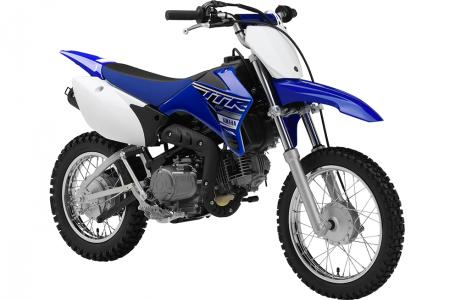

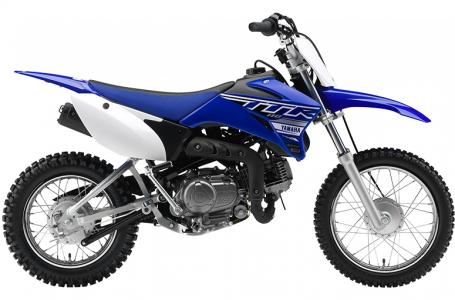

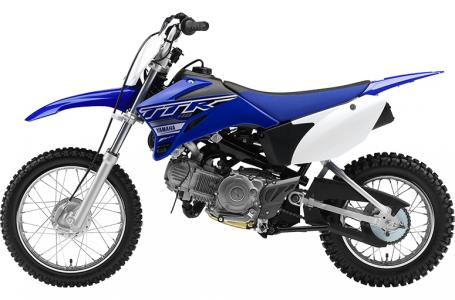

Engine Type: 4-stroke, air-cooled, SOHC, 2-valve, single
Displacement: 110cc
Bore and Stroke: 51 x 54mm
Cooling: Air
Compression Ratio: 9.3:1
Fuel System: Mikuni VM16
Ignition: CDI
Front Suspension: 31 mm fork / 115mm (4.5 in.) wheel travel
Front Brakes: Drum
Front Tire: 2.50-14-4PR
Rear Suspension: Monocross, single shock / 110 mm (4.3 in.) wheel travel
Rear Brakes: Drum
Rear Tire: 3.00-12-4PR
Dry Weight: Curb Weight: 72 kg (159 lb.)
Fuel Capacity: 3.8 L (0.8 imp. gal.)
Wheelbase: 1,080 mm (42.5 in.)
Ground Clearance: 180 mm (7.1 in.)
Seat Height: 670 mm (26.4 in.)
Transmission: 4-speed
Final Drive: Chain
Colors: Yamaha Racing Blue
