Engine Type: 4-stroke, air cooled, single
Displacement: 89.0cc
Bore x Stroke: 47.0 x 51.8mm
Cylinders: 1
Engine Cooling: Air
Fuel System: Mikuni PTE 16
Starting System: Electric with back-up kick-starter
Front Travel: 2.8 in.
Front Suspension: Single A-arm
Front Brake Type: Dual mechanical drums
Front Tires: AT 18 x 7-8 tubeless
Rear Travel: 2.9 in.
Rear Suspension: Swingarm
Rear Brake Type: Hydraulic disc
Rear Tires: AT 18 x 9-8 tubeless
Frame: Double cradle, steel
Dry Weight: Curb Weight: 267.0 lb.
Fuel Capacity: 1.5 gal.
Ground Clearance: At rear axle - 3.9 in.
Machine Dimensions (LxWxH): 56.1 in. x 35.6 in. x 36.4 in.
Wheelbase: 38.0 in.
Final Drive: 2WD, Chain
Transmission: Automatic CVT

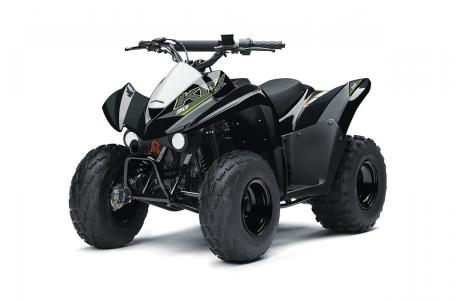

Colors: Lime Green, Super Black
