Engine Type: SOHC 4-stroke
Displacement: 686cc
Bore x Stroke: 102.0mm x 84.0mm
Engine Cooling: Liquid
Fuel System: Yamaha Fuel Injection (YFI), 44mm
Front Suspension: Independent double wishbone; 5-way preload adjustment
Front Travel: 7.6 in.
Front Brake Type: Dual hydraulic disc

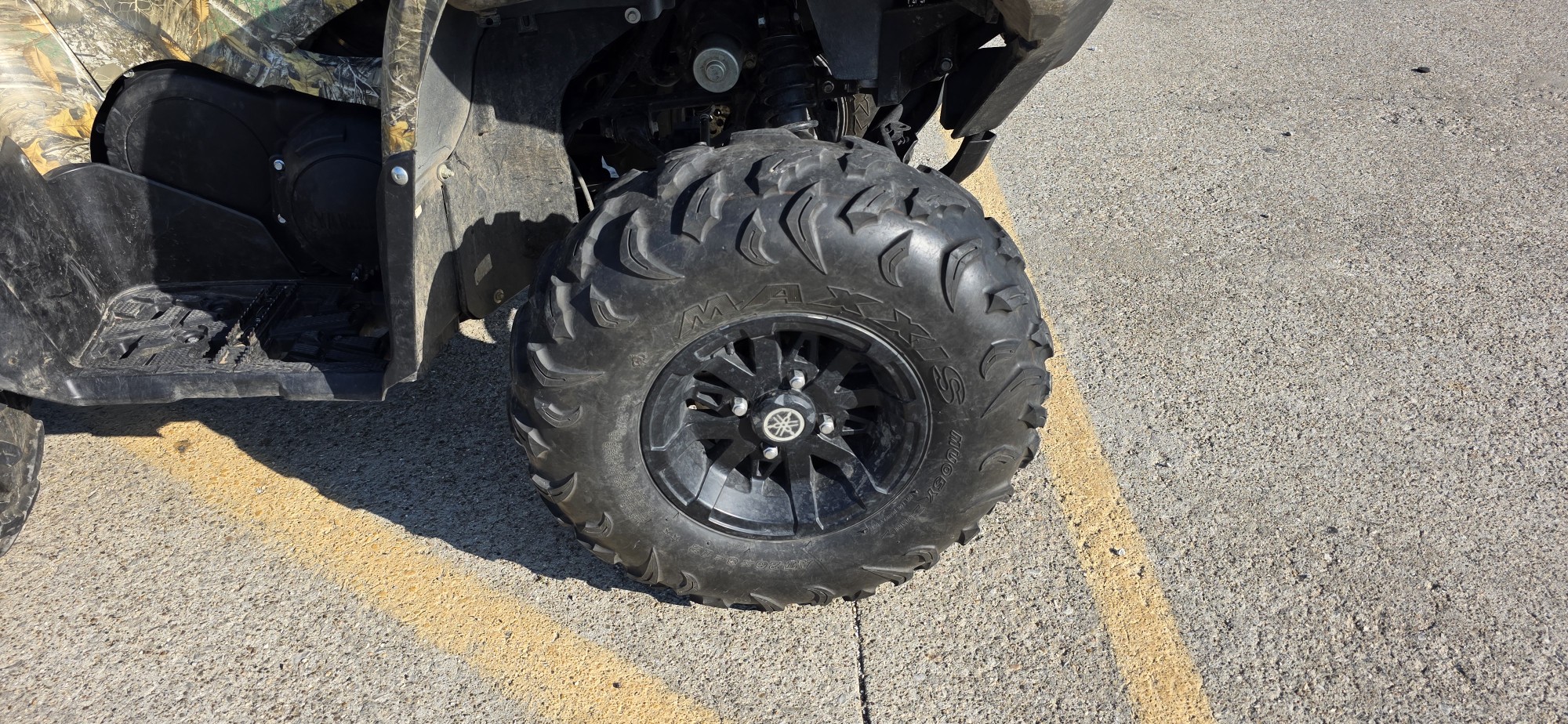

Front Tires: AT26 x 8-12 Maxxis® MU05Y
Rear Suspension: Independent double wishbone with anti-sway bar; 5-way preload adjustment
Rear Travel: 9.1 in.
Rear Brake Type: Dual hydraulic disc

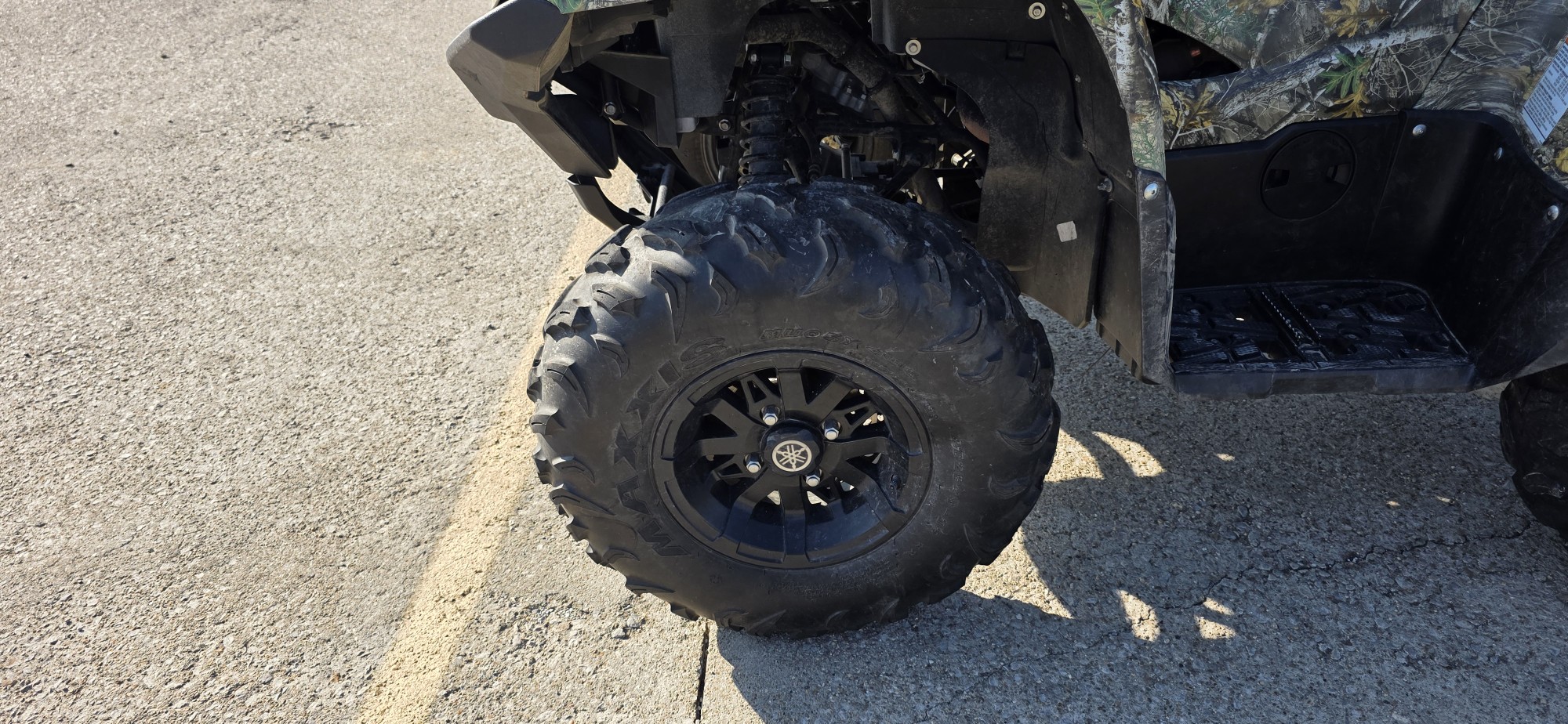

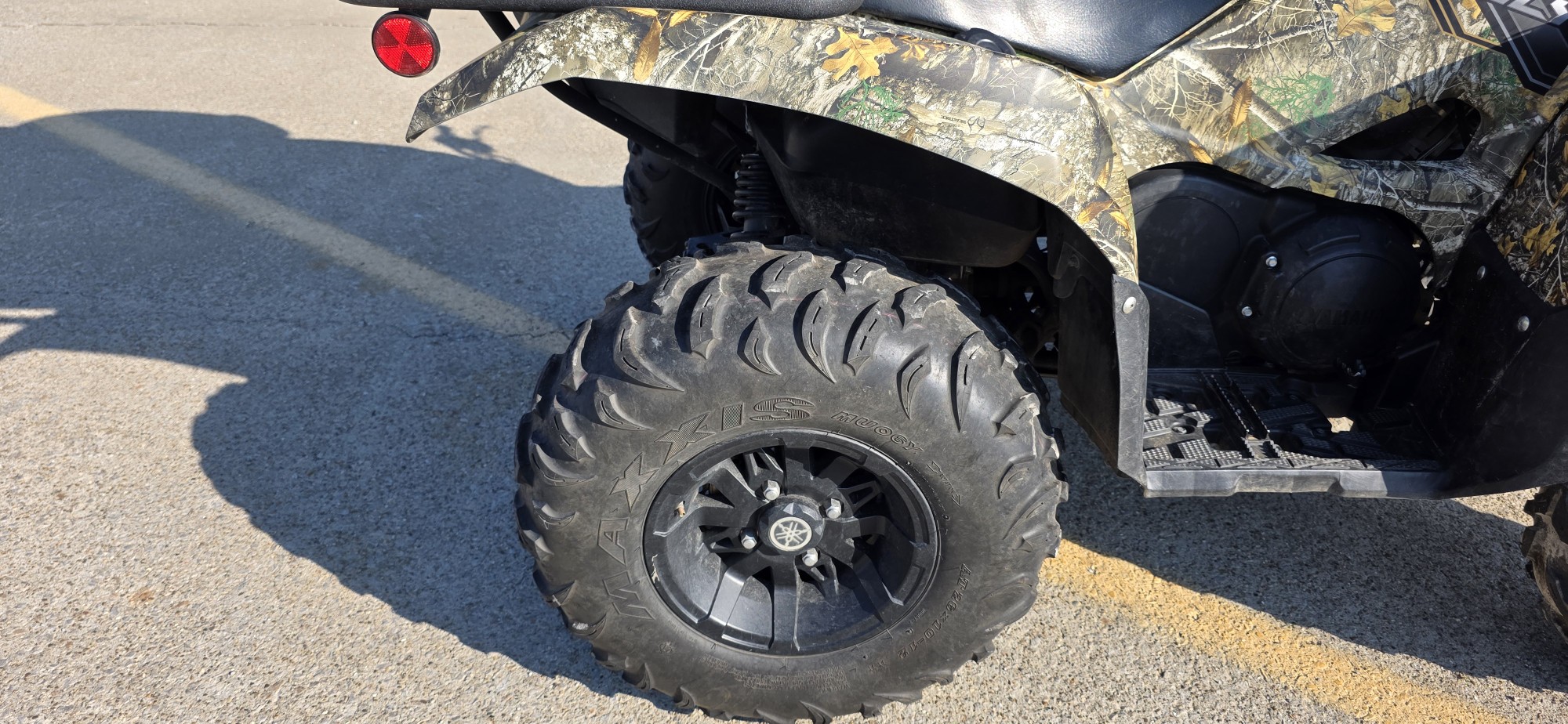

Rear Tires: AT26 x 10-12 Maxxis® MU06Y
Dry Weight: Curb Weight: 701 lb.
Front Rack Capacity: 110 lb.
Rear Rack Capacity: 198 lb.
Towing Capacity: 1322 lb.
Fuel Capacity: 4.8 gal.
Ground Clearance: 11.3 in.
Machine Dimensions (LxWxH): 81.5 in. x 48.4 in. x 49.3 in.
Wheelbase: 49.2 in.
Final Drive: On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
Transmission: Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
Colors: Ridge Red w/Aluminum Wheels, Alpine White w/Aluminum Wheels
